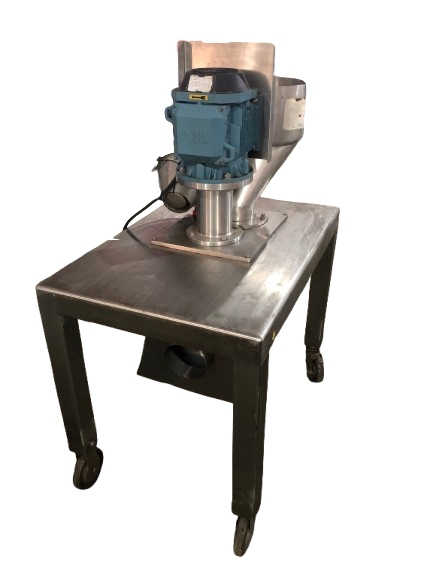

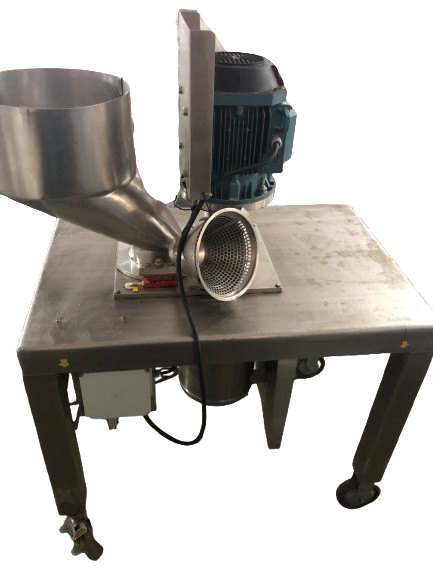

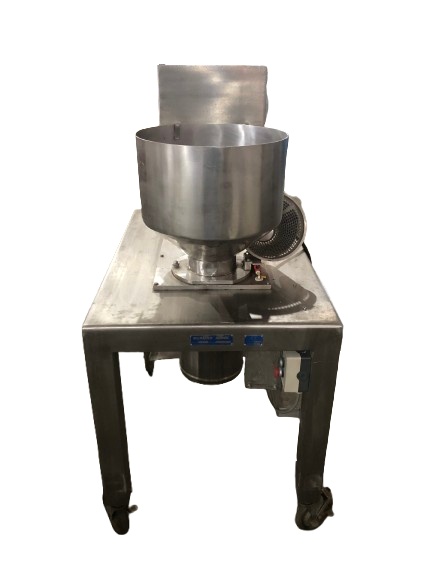

Quadro Comil Mill Conical Screen Model 194AS:
·
A low-speed design ensures gentle handling of the
product
·
Minimal energy and heat allow for milling
heat-sensitive materials effectively
·
Reduced dust lowers risks and promotes environmental
sustainability
·
A design focused on easy cleaning minimizes
maintenance needs
·
The plug-feeding feature eliminates capacity
limitations, accommodating both choke and flood feeding
·

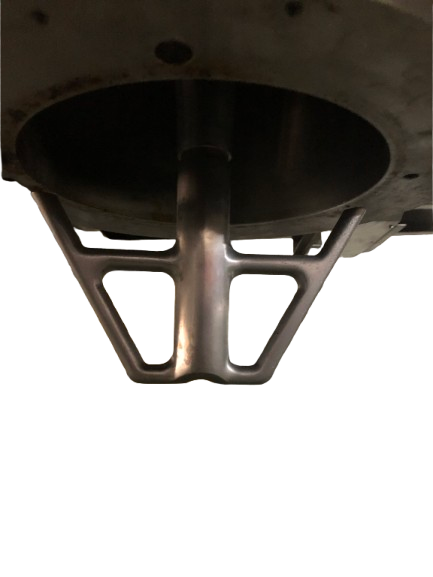

Currently equipped with 1601 Round Bar Impeller for medium-high
dry particles or granules’ milling and raw material conditioning
·
All Stainless Steel
·

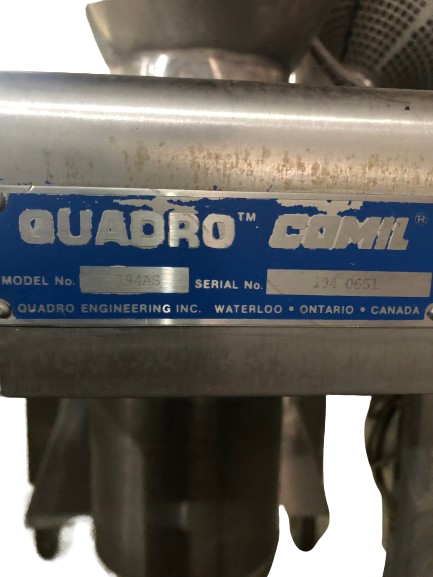

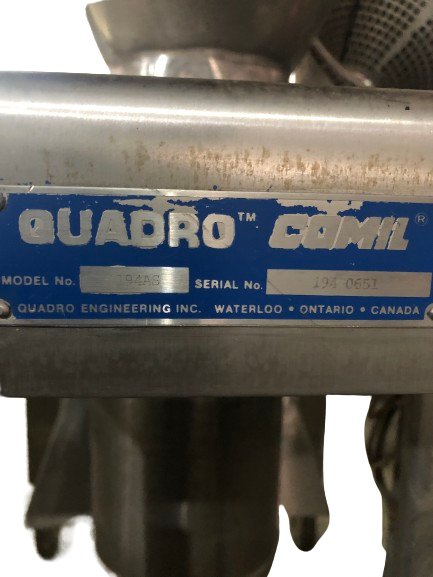

S/N 194-0651
·

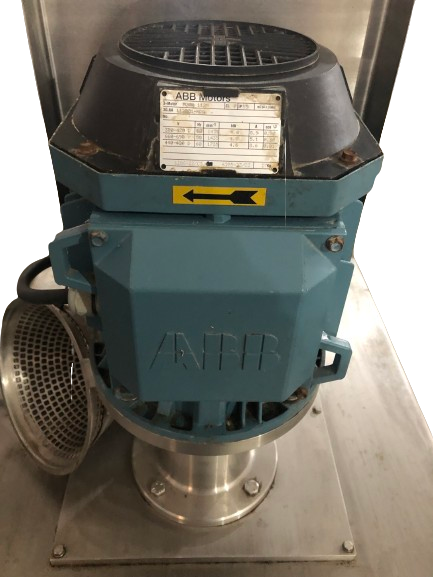

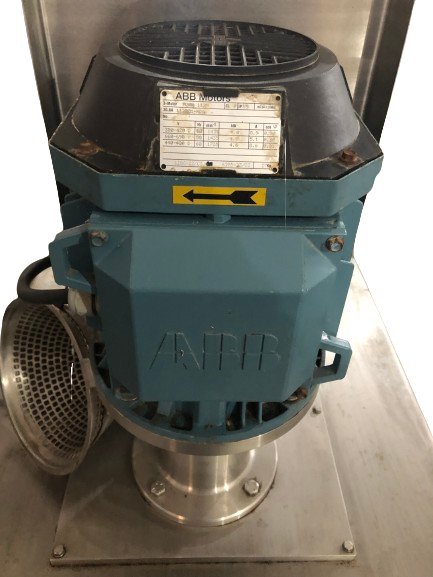

5HP Motor (4kW)

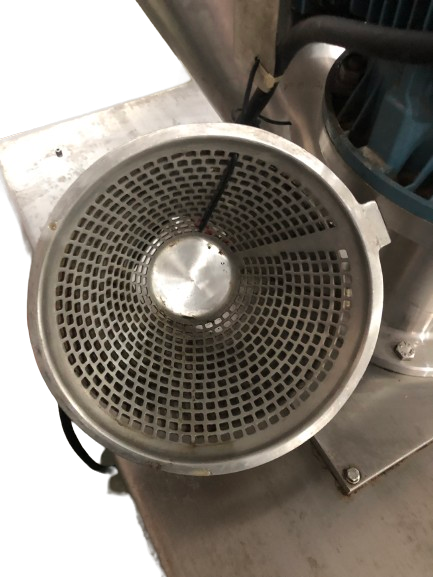

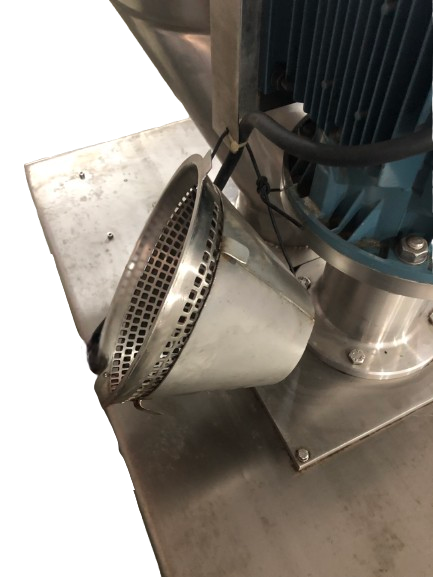

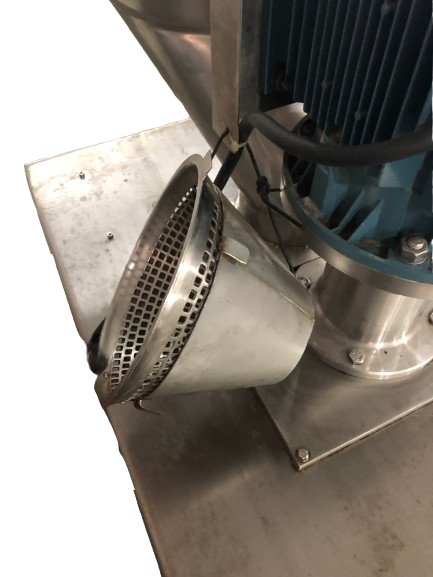

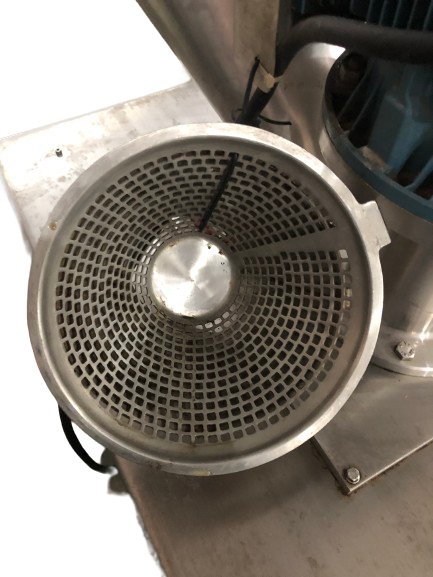

Includes Spare "Q” Square-Holed Conical Mill Screen:
·
Complete 360° positive product discharge, utilizing
the entire screen surface
·
Primarily designed for "wet mass milling"
and general product sizing applications
·
1100 kg/hr with wet 375Q (9.5MM) Mill Screen

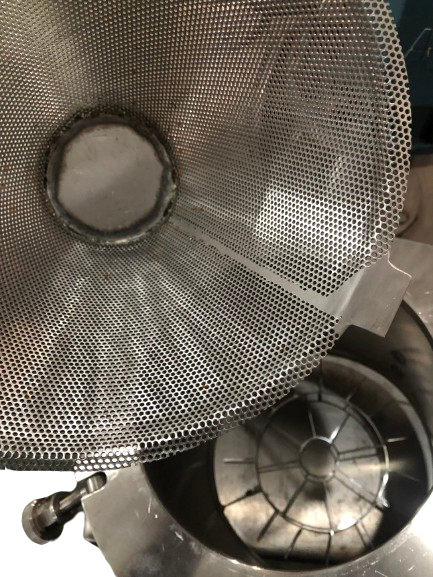

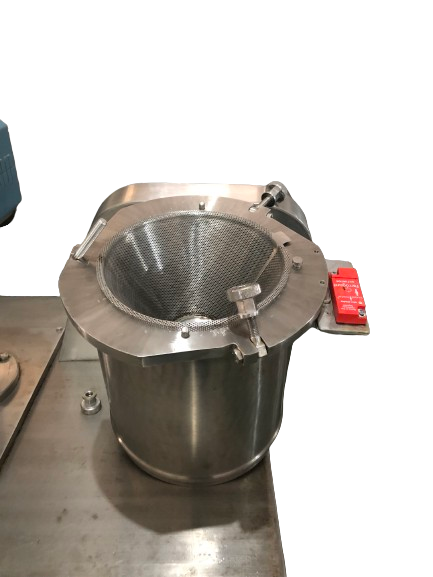

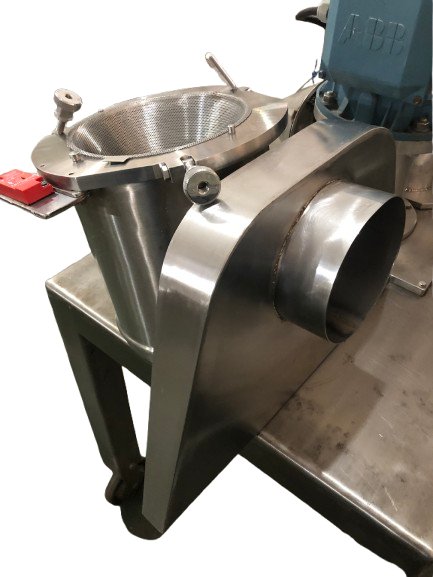

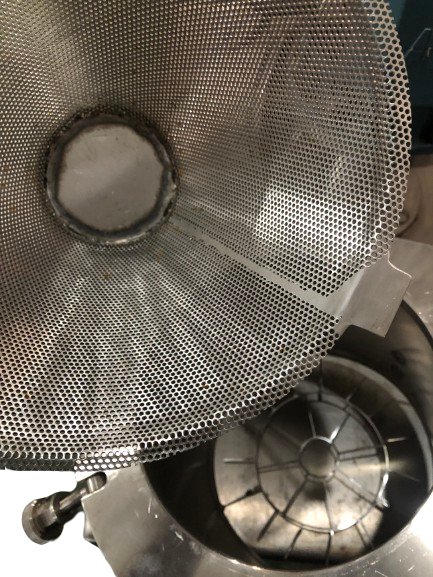

Currently Equipped with "R” Round-Holed Conical Mill Screen & Round
Bar Impeller:
·
Commonly utilized for reducing the particle size of
dry materials, breaking up agglomerates, homogenizing, and controlling bulk
density
·
1750kg/hr with dry 094R (2.4MM) Mill Screen
Reference Number: RL11
