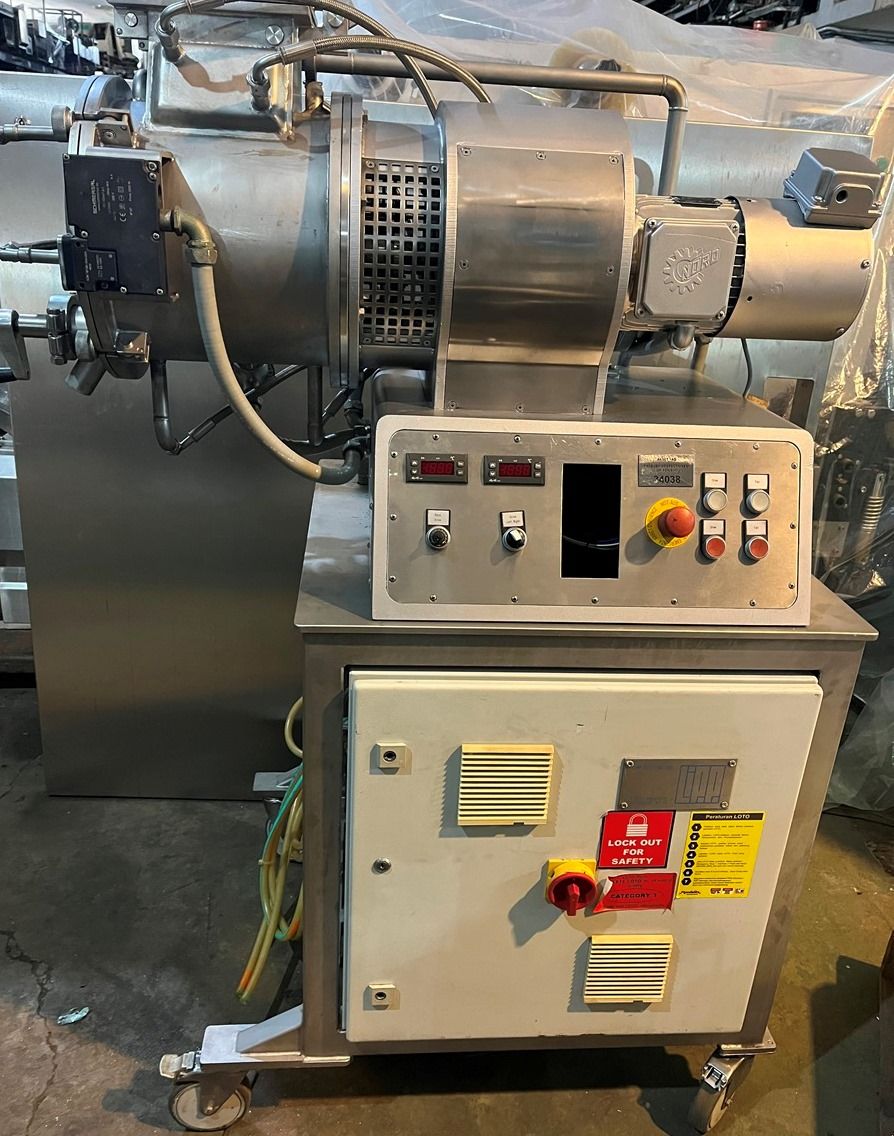

Lipp Mischtechnik Multi-Function Conching Mixer

Product Description

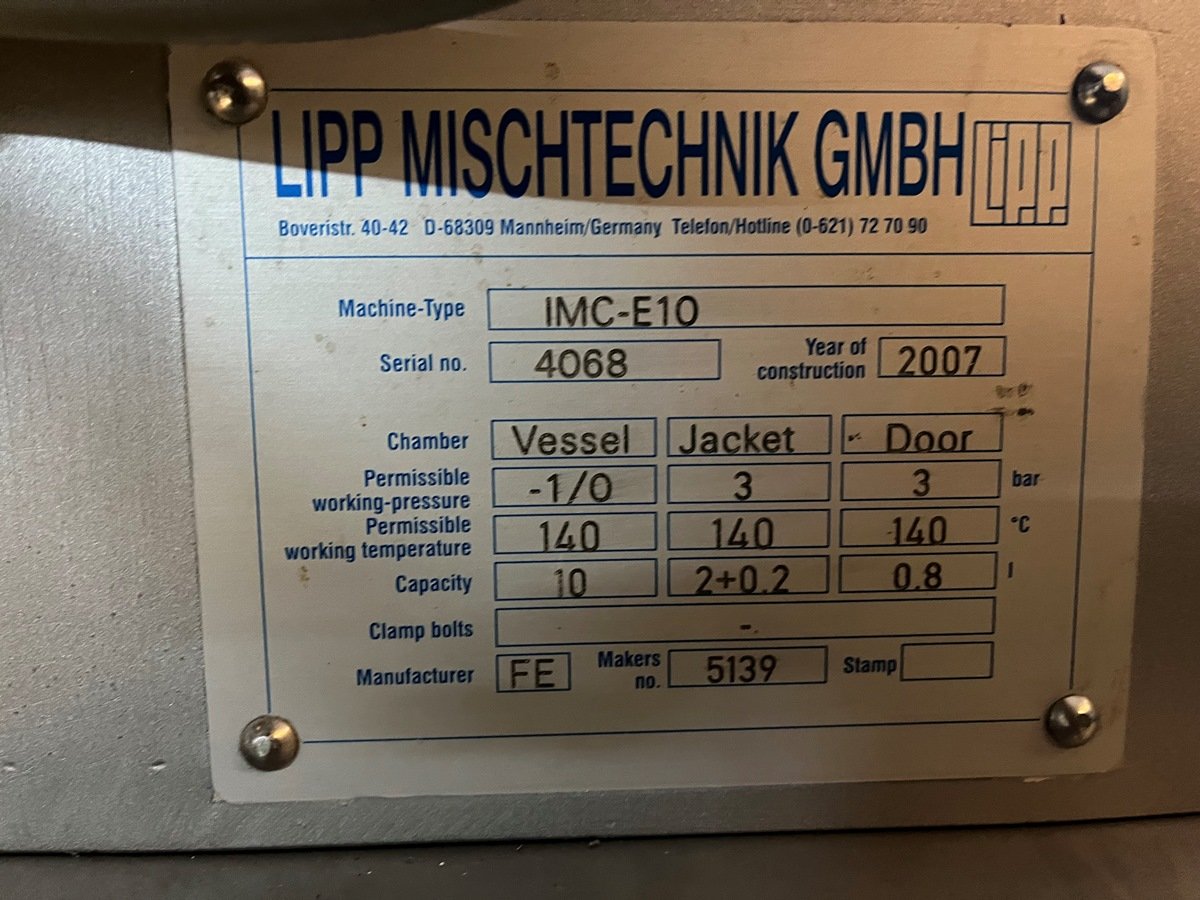

·        Vessel Permissible Working Pressure: -1/0 Bars.

·        Jacket & Door Permissible Pressure: 3 Bars.

·        Permissible Working Temperature: 140℃

·        Capacity In Vessel: 10 Liters

·        Capacity In Jacket: 2+0.2 Liters

·        Capacity In Door: 0.8 Liters

·        Serial Number 4068.

·        Year: 2007

·        Made in Germany

·        Recently Working @ Cadbury Confectionery

·        Can Perform Various Mixing Tasks Such as Conching, Crystallization, Fat Release, Aroma Development.

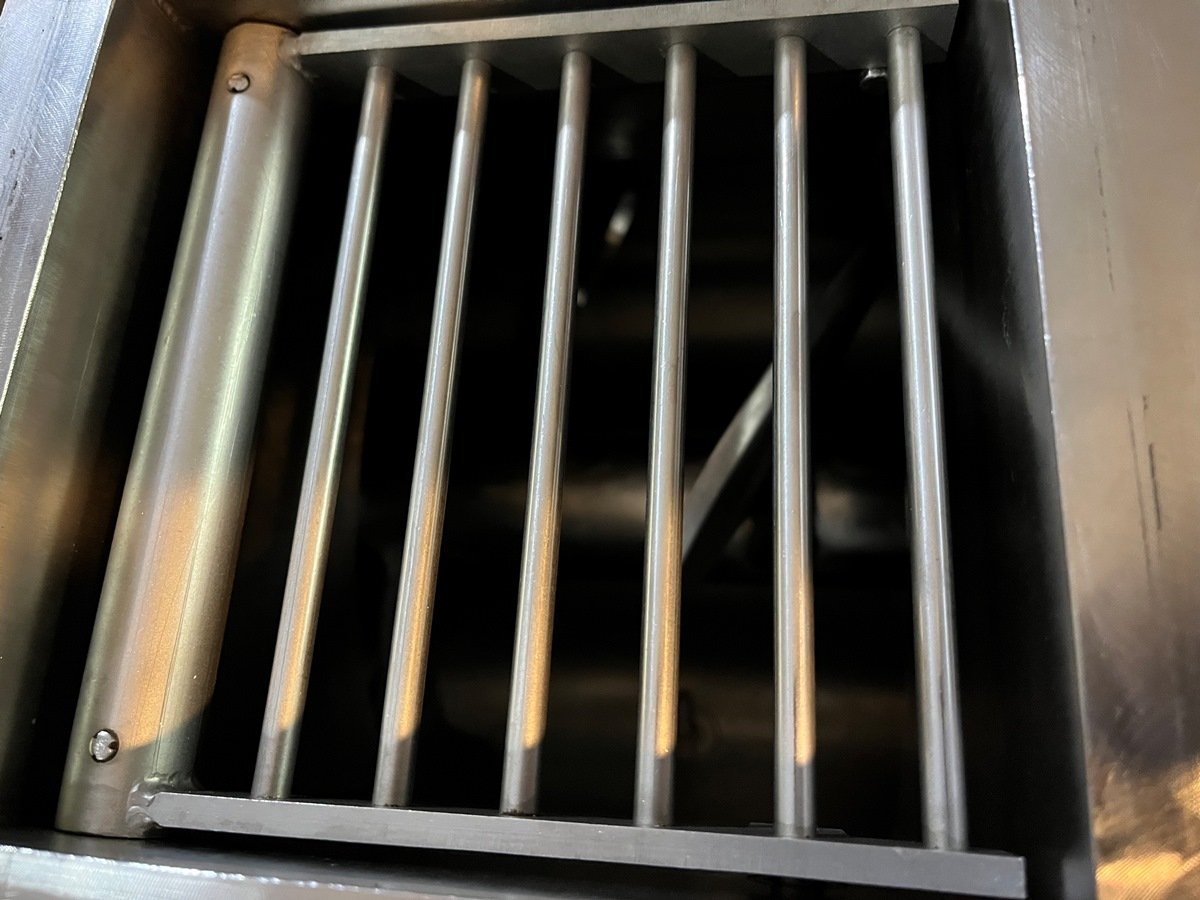

·        Has an Extremely Short Conching / Liquification Time Through the Installation of Spiral Chambers That Can Significantly Reduce the Conching Size.

·        Suitable for Producing High Quality Chocolate with Complex Aromas & Textures.

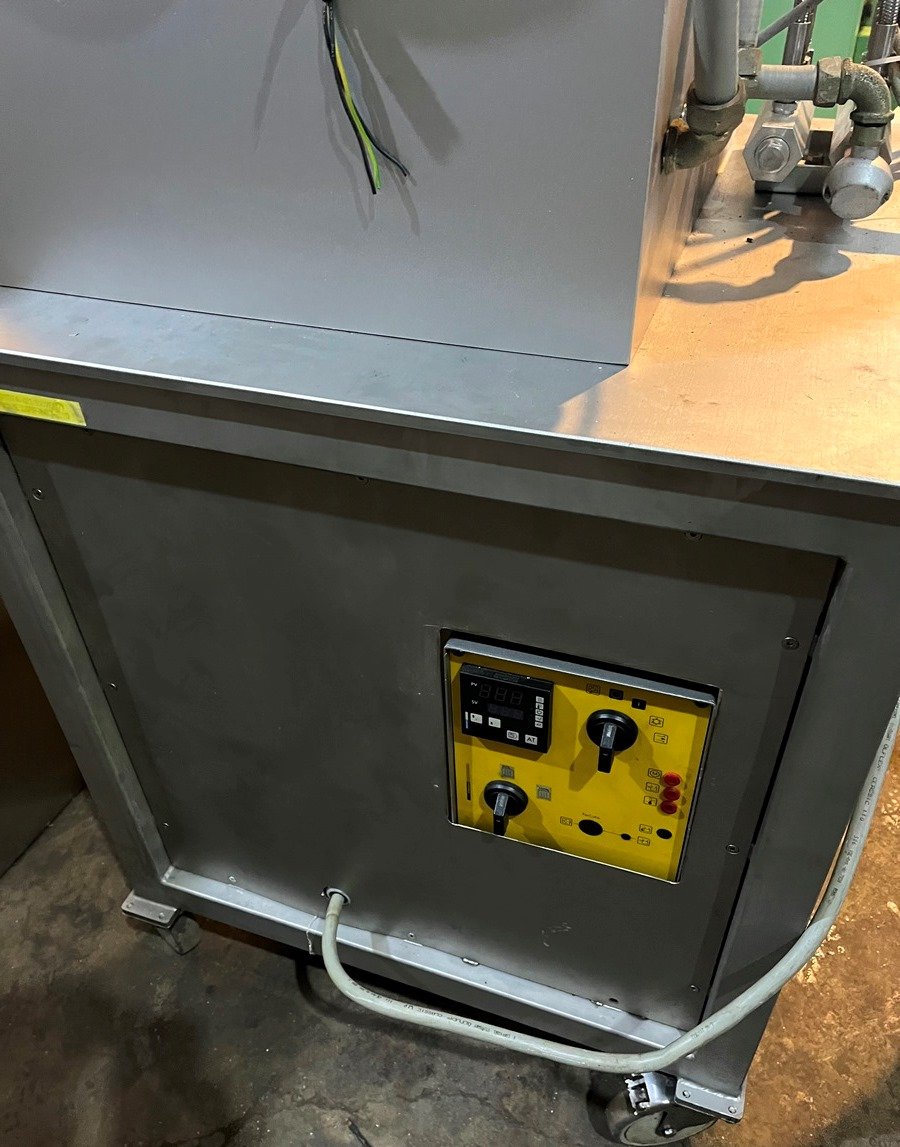

·        Can Function as Chiller

·        Number: 616-7544

·        Year of Manufacture: 2006

·        Cooling Power: 21 kW (60 K)

·        Heating Power: 6.6 Kw

·        Pump Power: 0.27 kW (30 L/min, 27 m)

·        Voltage Range (U): 380-420 V3 at 50 Hz

·        Nominal Voltage (Un): 400 V at 50 Hz

·        Nominal Power (Pn): 7.0 kW at 10 A

·        Maximum Temperature: 150°C

·        Phase 400V 10A 50 Hz 7.0kW

·        Maximum System Pressure: 3.0 bar

·        Minimum Expansion Volume: 2.6 L

·        Maximum Expansion Volume: 3.2 L



Product Properties

• Category:  Chocolate / Dragees
• Sub Category:  Chocolate Mixers
