Product Description
Haas / Mondomix
Aeration Technology Aerator / Whipper / Continuous Mixer, M# VB-25 with Heat
Exchanger & Chiller
·
Order No. Q11033465-7
·
Project 14812
·
Voltage 3*480v. 60hz. Panel Fla 58 A. Control Volt
24dc V. Largest Motor 10hp.
·
Max Pressure 145 Psi
·
Year 2012
·

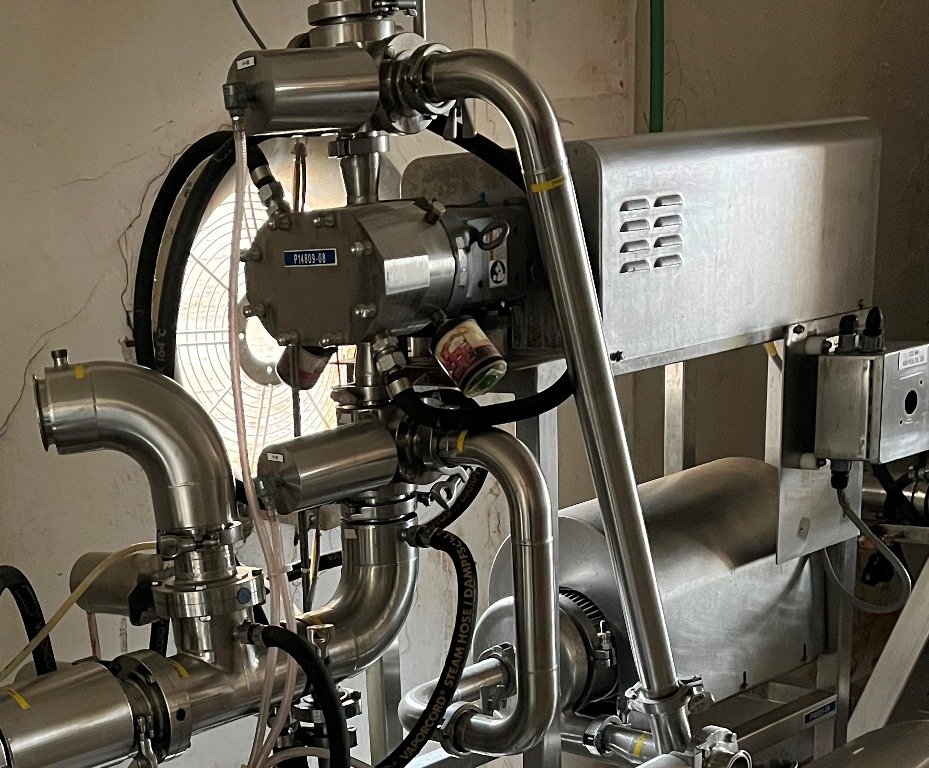

Waukesha Positive Displacement Product Pump
built on the same Skid
·

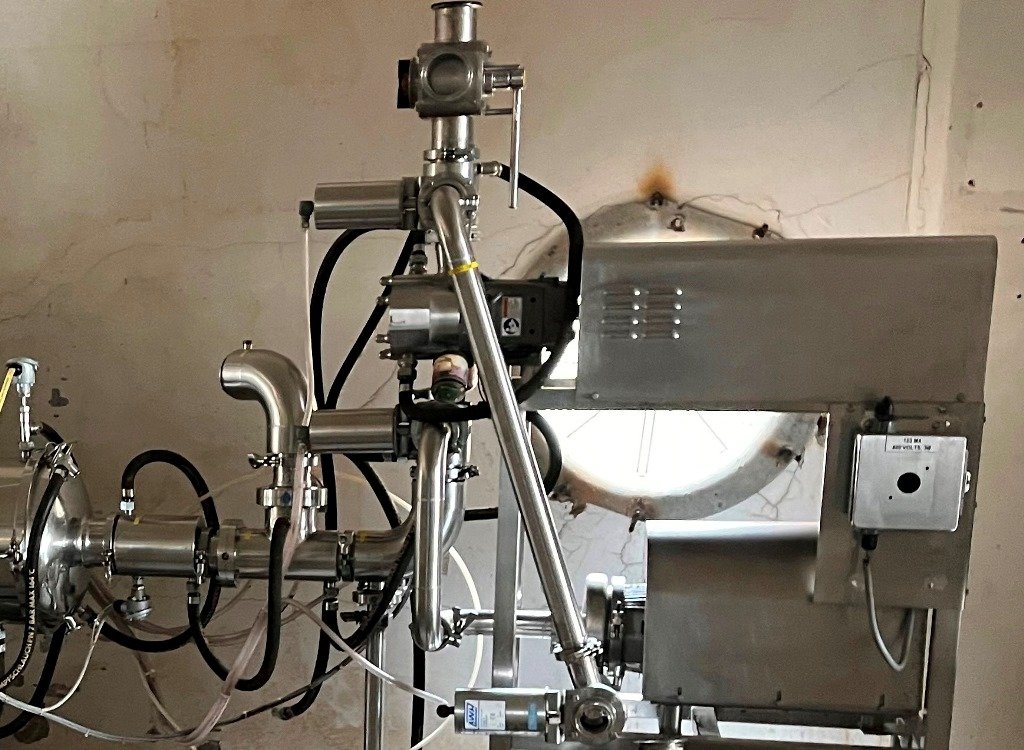

Waukesha Centrifugal Pump
·
Connections & Fittings
Haas
/ Mondomix Mondotherm Scrapped Surface Heat Exchanger For The Continuous
Heating Or Cooling Of Viscous Liquids Or Liquids Containing Particles That
Cannot Be Handled By A Plate Type Or Tubular Heat Exchanger Due To Their
Consistency.
·
Usually Used To Heat Or To Cool Down The Cream
Before The Next Step.
·
In Wafer For Example After The Ball Mill The
Cream Comes Out 55°C To 60°C Degrees.
·
The Mondotherm Cools Down The Cream Before The
Cream Spreading Machine.

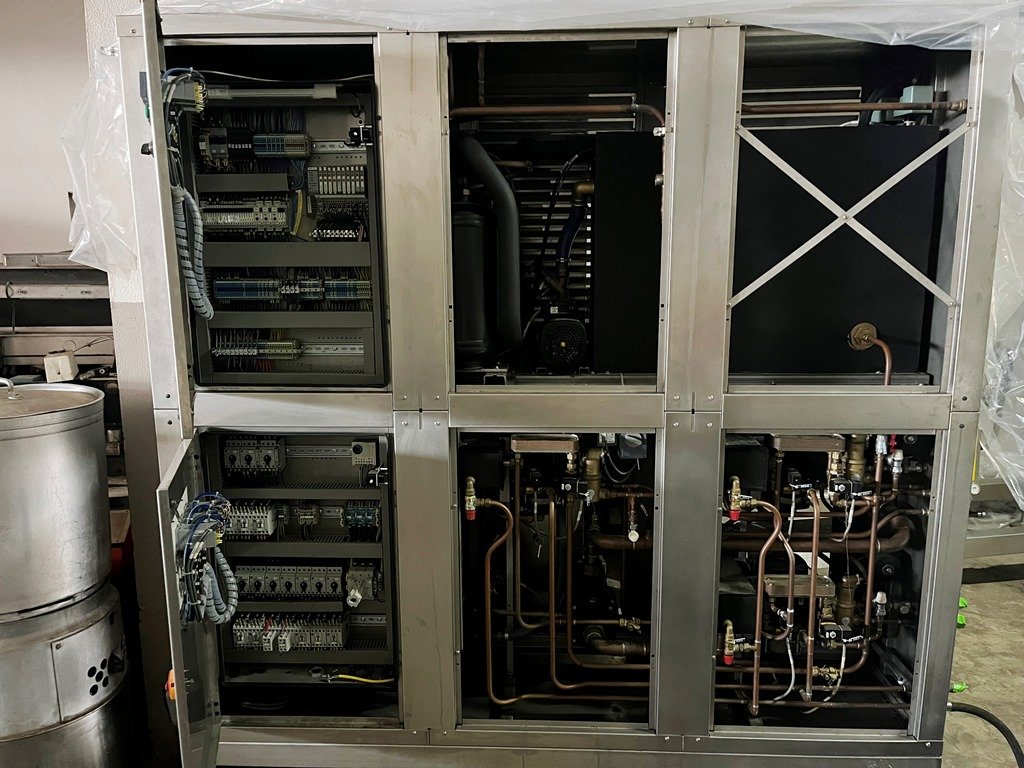

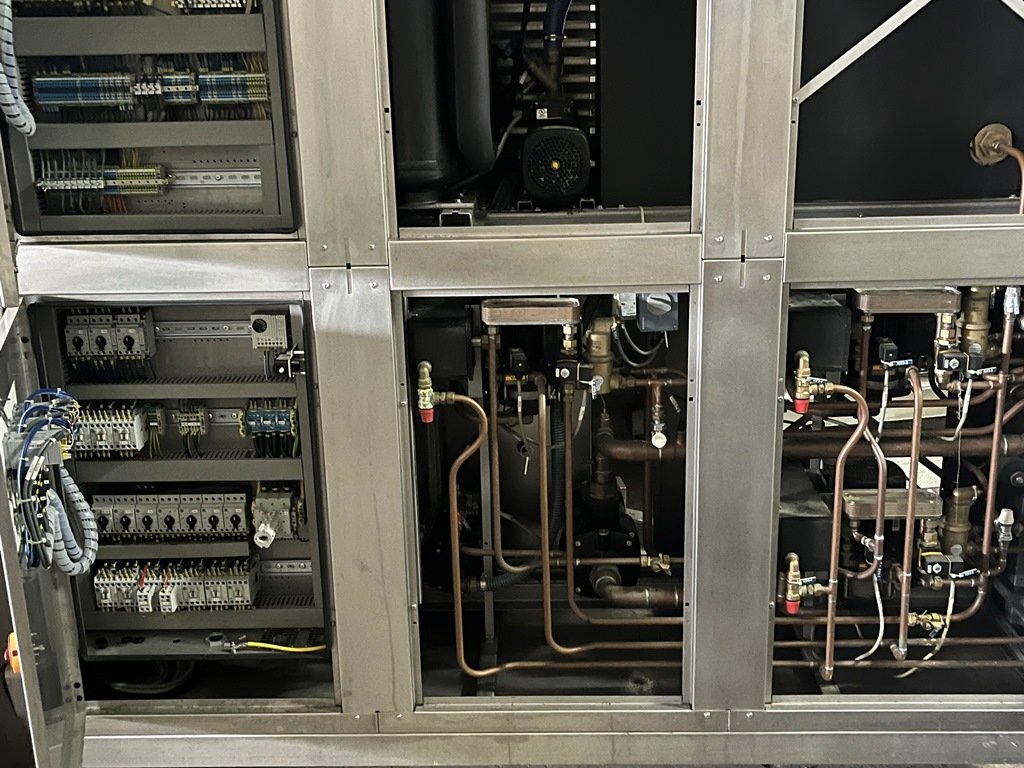

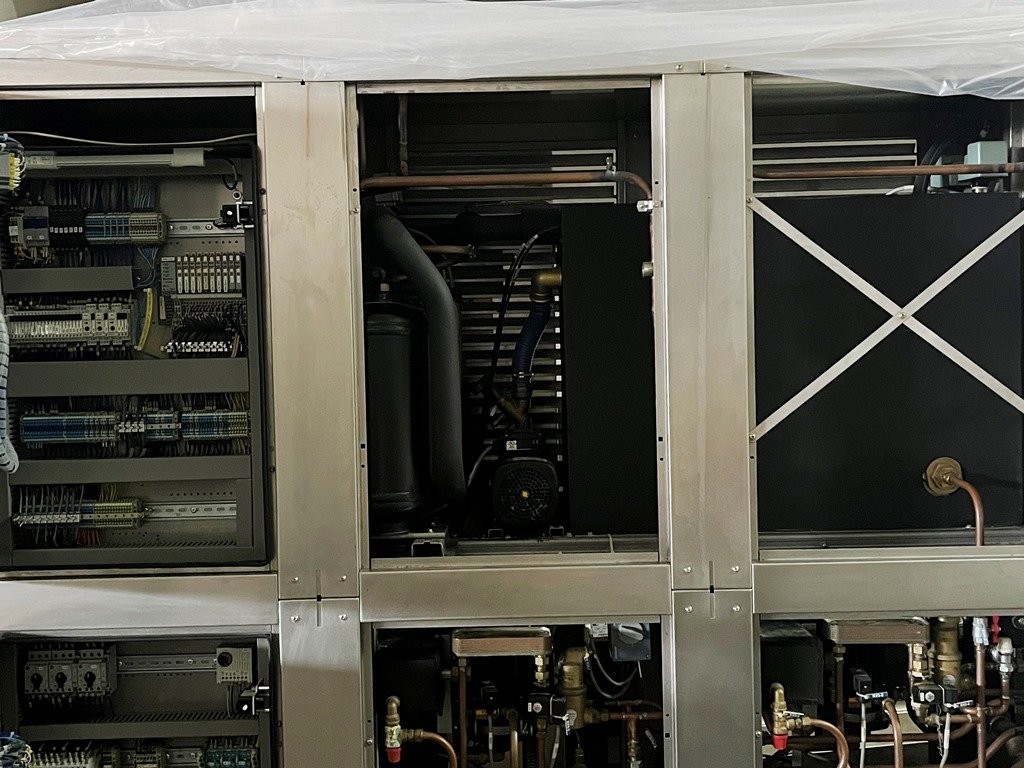

Haas
/ Mondomix DTE Chiller and Heater Unit.
·

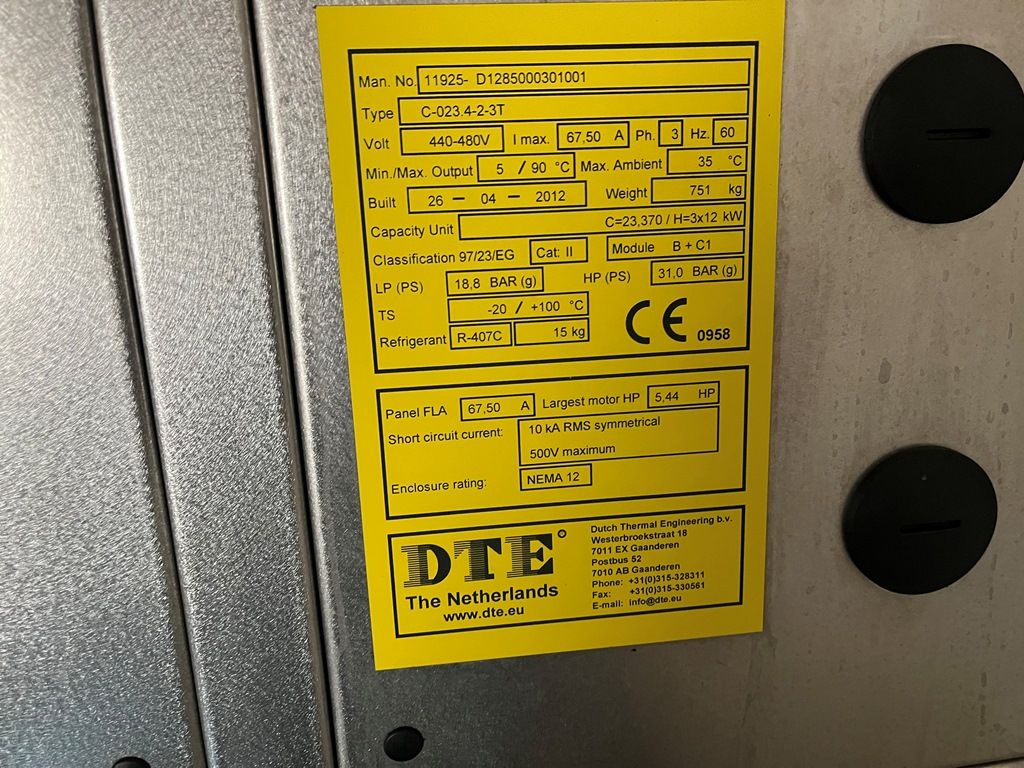

Type: C-023.4-2-3T.
·
Machine # 11925-D1285000301001
·
Volt 440-480V / Ph 3. Hz 60 / Max: 67.5 A.
·
Min/Max Output 5°C/90°C.
·
Max Ambient 35°C
·
Built 26/4/2012.
·
Capacity Unit: C=23. 370/H = 3*12KW.
·
LP (PS): 18.8 Bar (g)
·
HP (PS): 31 Bar (g)
·
TS: -20°C/+100 °C
·
Refrigerant: R-407C. 15kg
·
Panel FLA: 67.50A. Largest Motor: 5.44 HP
·
Built-in 3 Grundfos Water Pumps
Reference
Number: NM73L
Product Properties
