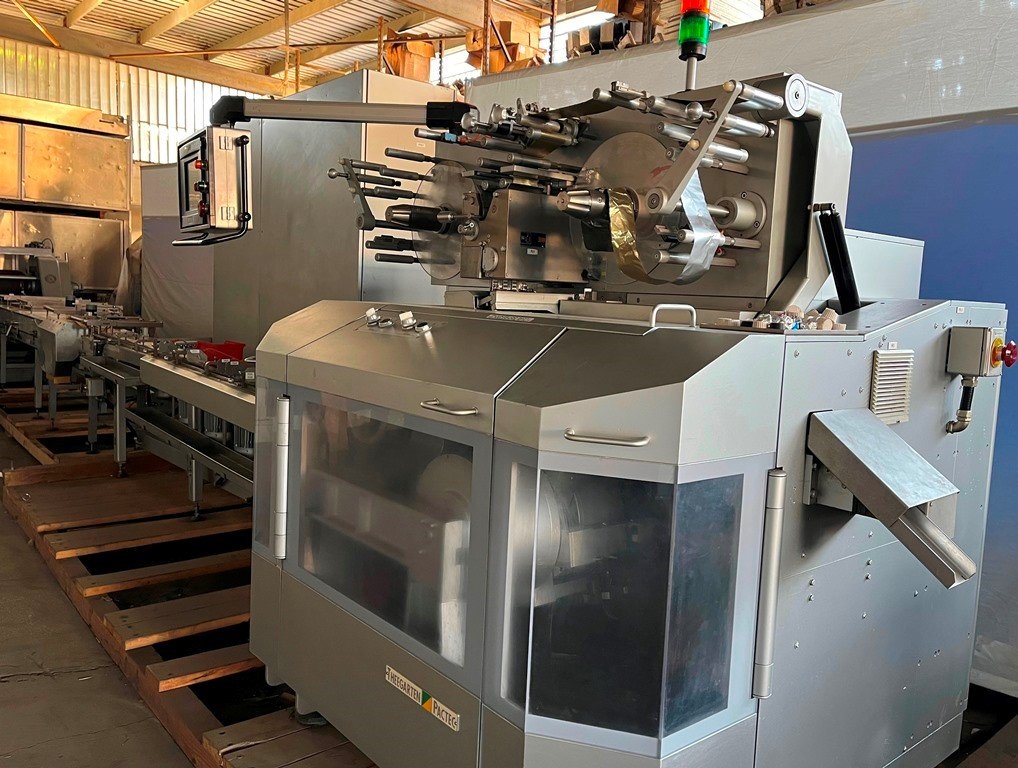

Recently Working at Hershey’s on their Bliss Product
·
Current Format: 27.2*27.2*11.5mm. Can be Set Up on
other shapes at additional charges.
·
S.N: EMC1.008.
·
Year 2007.
·
Output Capacity: As per Manufacturer Up to 800 products/min.
·
Allen Bradley Logix 5560M03SE PLC Co 3000 Servo
Drives, And Powerflex Variable Frequency Drives.
·
Product dimensions: Length: 15 – 30 mm. Width: 10 – 30
mm. Height: 7 – 24 mm or above 24 mm upon request (Chocolate product) & Ø
15 – 30 mm. Height: 7 – 24 mm (Dome shaped chocolate product).
·
Technical Data: Utilities. Connected load: 9,5 kVA.
Compressed air consumption: 1m³/h; 500 kPa.
·
Measurements: Length: 4395 mm. Width: 1345 mm. Height:
1760 mm.
·
Weight of Machine: 2160 kg. Weight of the cabinet: 590
kg.
·
Wrapping material: Aluminium foil.
·
Material dimensions: Reel diameter: Up to 350 mm. Reel
width: Up to 160 mm. Core diameter: 70 – 77 mm.
Special features
·
Servo control with PLC functions
·
A particularly gentle handling of the products is
guaranteed by the continuous motion principle
·
Machine speed control depending on the availability of
products
·

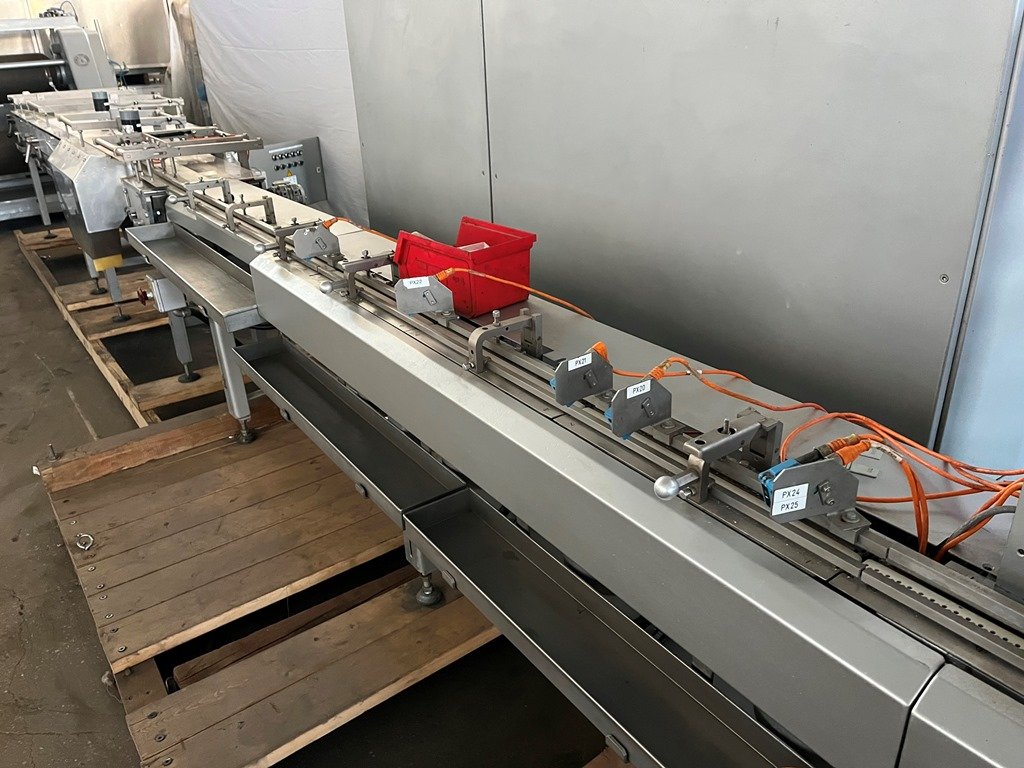

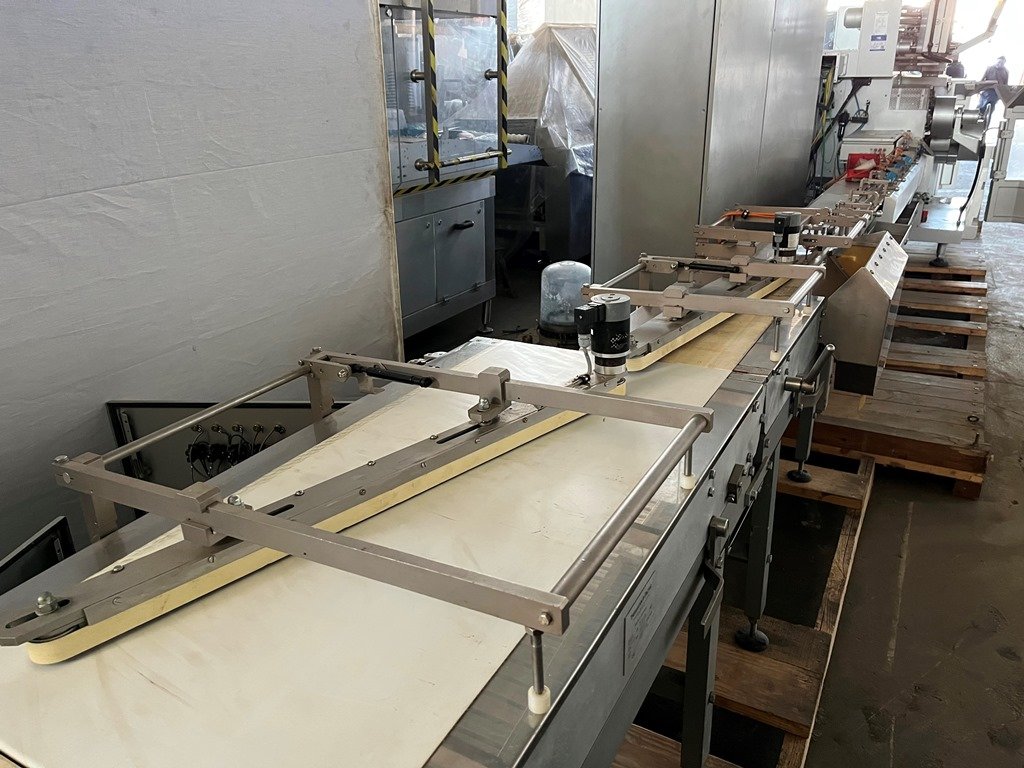

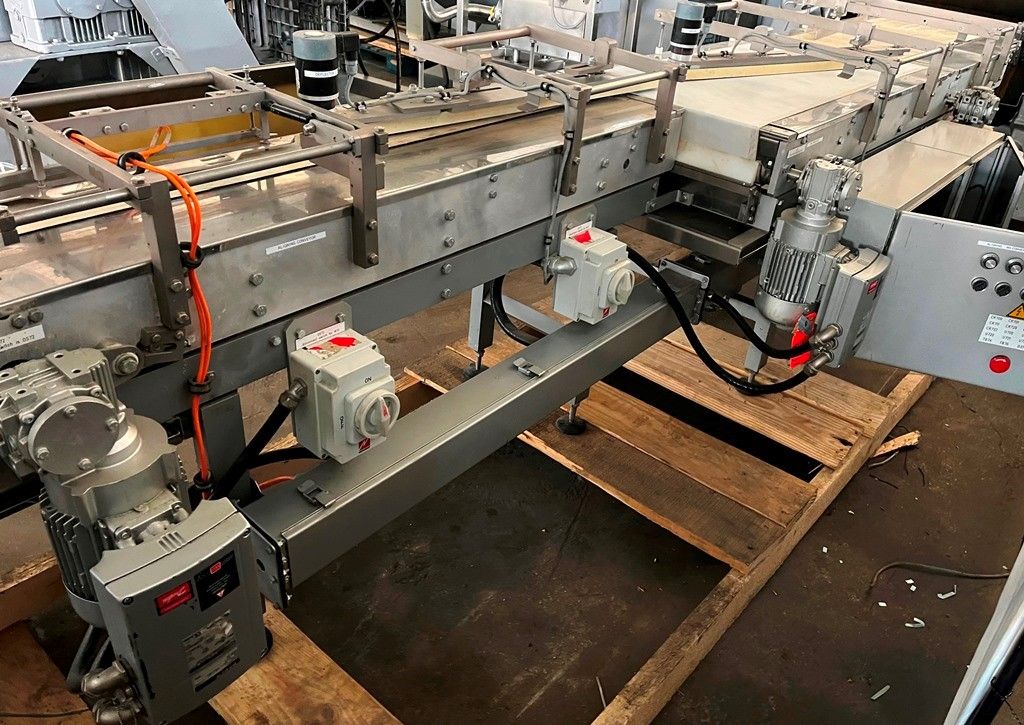

Phasing and feeding belt for product synchronisation
·
Saving of wrapping material by "no product – no paper”
device
·
Automatic splicer to change wrapping material reels
without stopping the machine
·
Ejection of spliced, mal-registered and unwrapped
products
·
Servo-driven wrapping material feed rollers, wrapping
material knife and material reels
·
Electro motor-driven pneumatic reel centring and core
locking devices
·

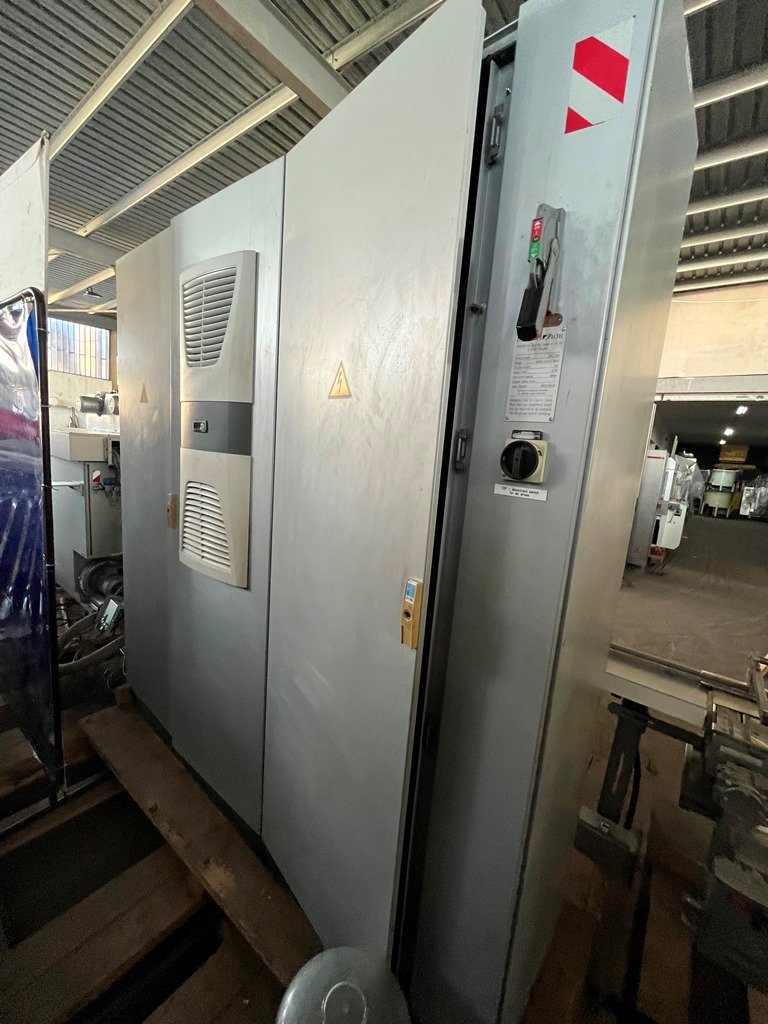

All electrical and electronic components are located
in a separate switch cabinet
·
Excellent accessibility for operation, maintenance and
cleaning purposes
·

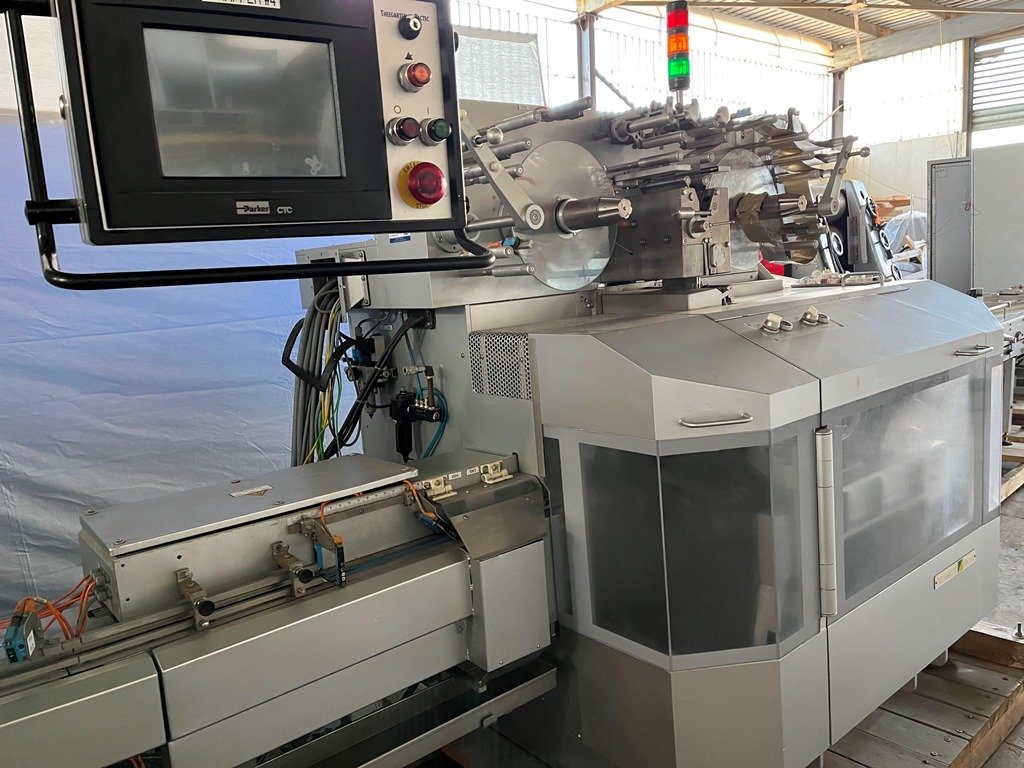

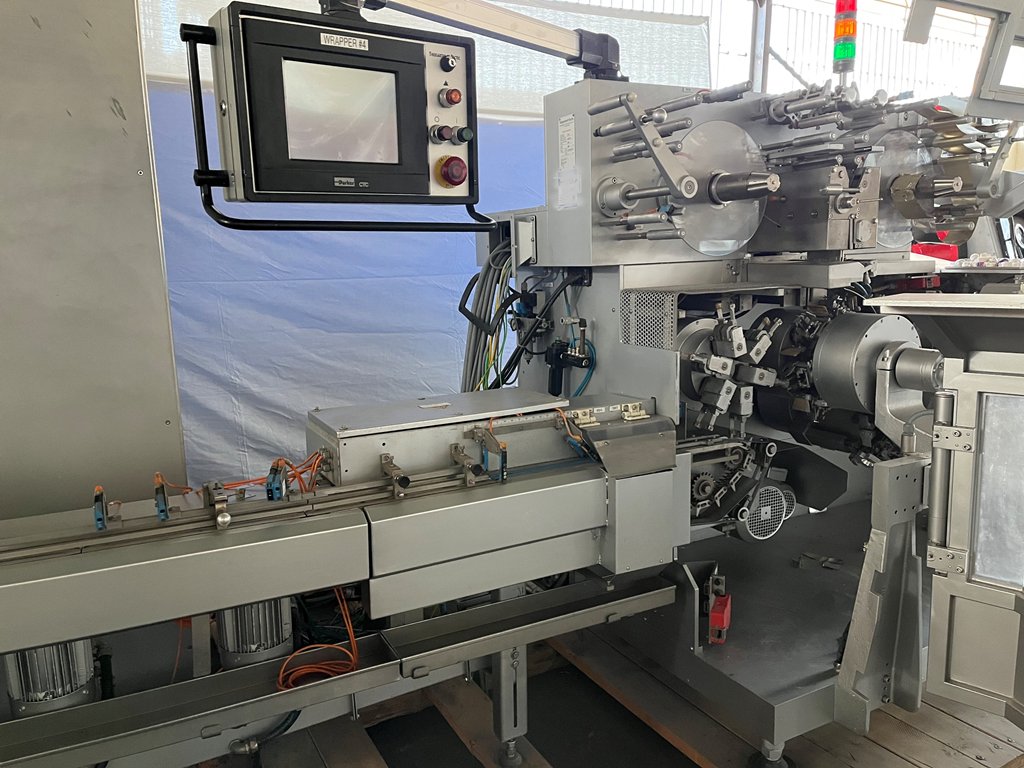

Easy operation due to the touch screen
