· Recently Working at Hershey’s on their Bliss Product
· Current Format: 27.2*27.2*11.5mm. Can be Set Up on other shapes at additional charges.
· S.N: EMC1.009.
· Year 2007.
· Output Capacity: As per Manufacturer Up to 800 products/min.
· Allen Bradley Logix 5560M03SE PLC Co 3000 Servo Drives, And Powerflex Variable Frequency Drives.
· Product dimensions: Length: 15 – 30 mm. Width: 10 – 30 mm. Height: 7 – 24 mm or above 24 mm upon request (Chocolate product) & Ø 15 – 30 mm. Height: 7 – 24 mm (Dome shaped chocolate product).
· Technical Data: Utilities. Connected load: 9,5 kVA. Compressed air consumption: 1m³/h; 500 kPa.
· Measurements: Length: 4395 mm. Width: 1345 mm. Height: 1760 mm.
· Weight of Machine: 2160 kg. Weight of the cabinet: 590 kg.
· Wrapping material: Aluminium foil.
· Material dimensions: Reel diameter: Up to 350 mm. Reel width: Up to 160 mm. Core diameter: 70 – 77 mm.
Special features
· Servo control with PLC functions
· A particularly gentle handling of the products is guaranteed by the continuous motion principle
· Machine speed control depending on the availability of products

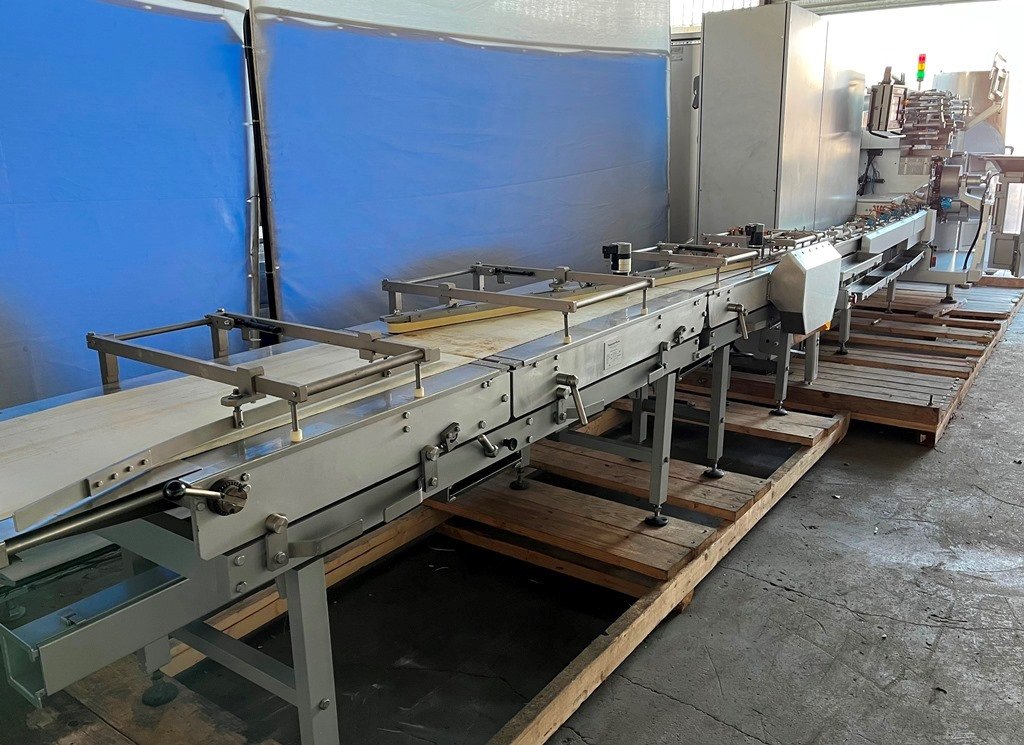

· Phasing and feeding belt for product synchronisation
· Saving of wrapping material by "no product – no paper” device
· Automatic splicer to change wrapping material reels without stopping the machine
· Ejection of spliced, mal-registered and unwrapped products
· Servo-driven wrapping material feed rollers, wrapping material knife and material reels
· Electro motor-driven pneumatic reel centring and core locking devices
· All electrical and electronic components are located in a separate switch cabinet
· Excellent accessibility for operation, maintenance and cleaning purposes
· Easy operation due to the touch screen
